Lobe pump with adjustable base plate
The base plate of lobe pump is adjustable, the height can be adjusted according to requirement on site.
Description

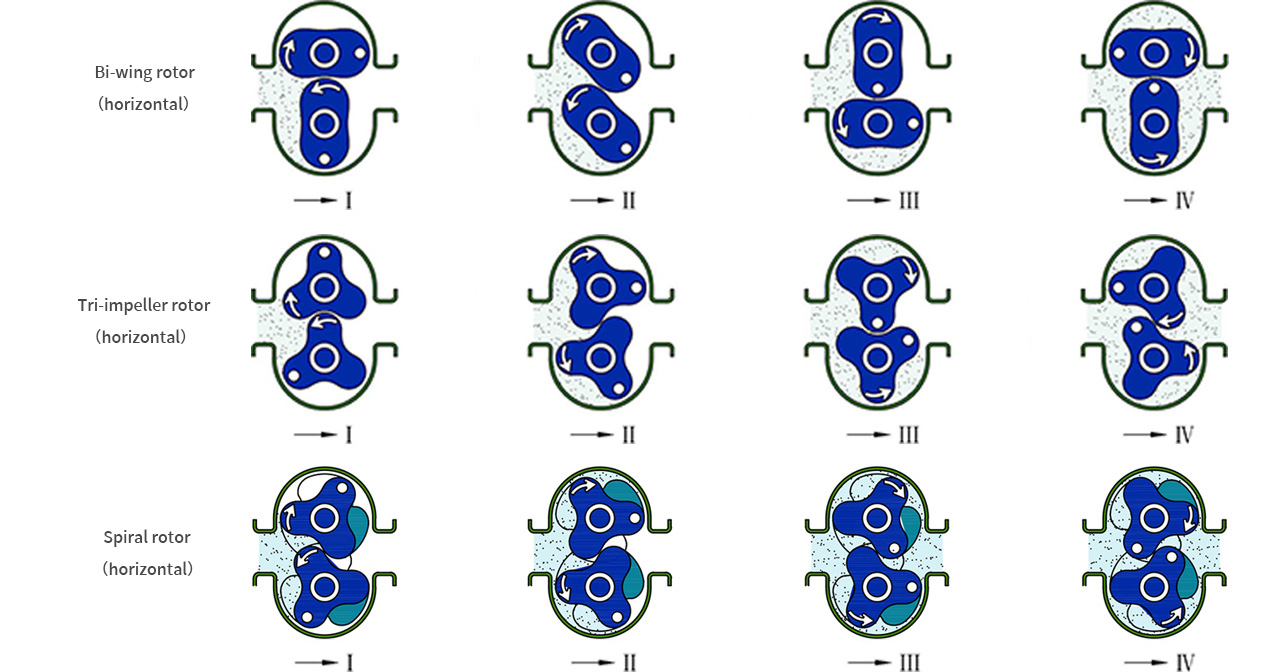

Working principle
Features
01 Gap is kept between the rotors and rotors & pump body, no friction, long using-life. | 02 Simple assembling and disassembling, easy to maintenance and clean, less easily-damaged parts. | 03 High efficiency and energy-saving, low failure, reliable sealing and low noise. | 04 In the same type pump, different type rotor can be interchanged. |
05 Capable to pump the viscous medium from 1cp to 2million cps. | 06 Capable of pumping mixture of gas, fluid and solid medium. | 07 Equipped with inverter, the flow can be adjusted as requirement of end-user. | 08 Flange, screw or clamp connection can be selected as required. |
09 Higher hygienic grade, support CIP, SIP. The surface roughness is 0.2--0.6mm, got 3A, FDA certification. | 10 Hygienic safety valve is built-in structure. |

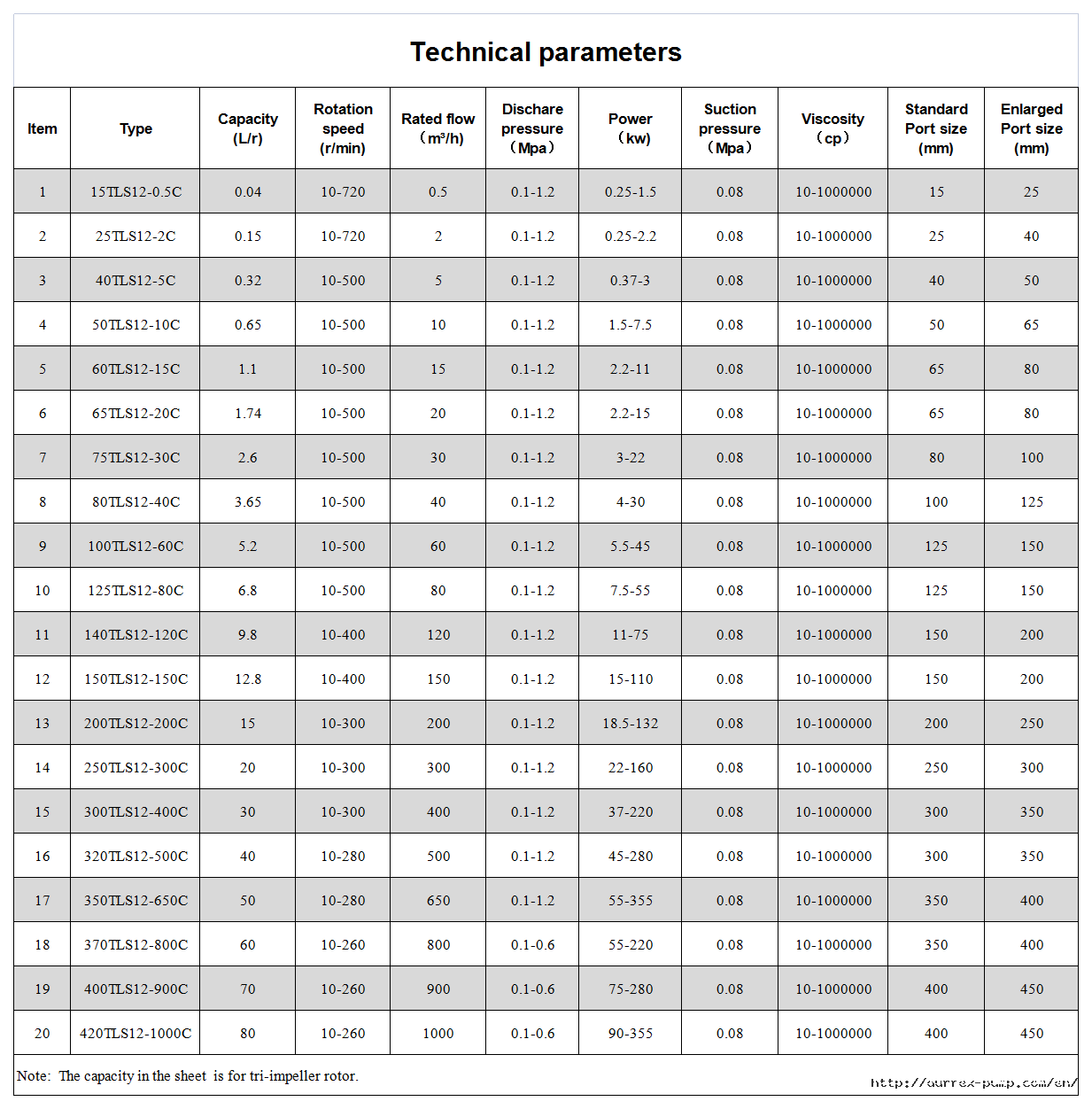

Technical parameters
